Understanding Hydrostatic Pressure and Basement Leaks in Auckland

What Is Hydrostatic Pressure?

Hydrostatic pressure is the force exerted by standing water or groundwater against surfaces in contact with it, such as your home’s basement walls and floors. In Auckland, where rainfall is frequent and soils often retain moisture, this pressure builds up outside below-ground walls after persistent rain. When water can’t drain away rapidly because of clay soils or blocked drainage, pressure on your basement increases—resulting in leaks, cracks, and, in severe cases, structural problems.

“Hydrostatic pressure occurs where water builds up around a home’s foundation and exerts force on the structure. If left unmanaged, it will inevitably find the path of least resistance and penetrate even the smallest cracks.” – A Plus Group NZ

Why Is It a Problem in Auckland?

High Rainfall and Wet Climate

Auckland’s annual rainfall averages about 1,200mm, with intense bursts during winter storms. This amount of moisture puts all sub-ground spaces at risk. The North Shore, for instance, often experiences water pooling in low-lying areas, leading to saturated soils around home foundations.

Clay-Rich Soils

Much of Auckland’s geology, particularly in coastal and hillside suburbs, consists of clay that holds water. Unlike gravelly or sandy soils, clay drains poorly, magnifying hydrostatic pressure around basements for days or weeks after a storm.

Home Design Legacy

Many local homes, especially those built before the 1990s, may not have robust external waterproofing or subsurface drainage. Timber-framed and block-walled structures, so common in New Zealand, can be especially vulnerable when not protected by modern waterproof membranes.

Signs of Hydrostatic Pressure and Basement Leaks

Understanding the warning signs early can save thousands in repairs and ensure a healthy, dry home:

• • Damp or discoloured patches on basement walls or floors

  • Efflorescence (white, chalky stains) signalling water seepage

  • Musty odours or visible mould growth

  • Peeling paint or wallpaper

  • Pooling water along skirting boards or floor edges

  • Cracking or bowing of basement walls

“Even minimal water ingress is a red flag—persistent leaks promote toxic mould, timber decay, and, over time, expensive structural damage…” – A Plus Group NZ



How Hydrostatic Pressure Causes Basement Leaks

Hydrostatic pressure pushes water into tiny cracks or weak points in foundations. Over time, the pressure can:

• • Widen existing cracks or joints in concrete/block walls

  • Force water through mortar or between slab-wall joints (known as the cold joint)

  • Overwhelm poorly sealed waterproof membranes or coatings

  • Exploit construction defects, like insufficient drainage or improper sealing

Left unchecked, this process leads to chronic leaks, undermining your home’s foundation and risking high repair bills.



Auckland-Specific Risk Factors

Sloping Sections and Retaining Walls

In Auckland’s hilly suburbs, water naturally travels downhill, pressurising basements on the high side of a section or below retaining walls. Poor surface grading or blocked drains exacerbates the pressure.

Older Homes and Renovations

Older Auckland homes may never have had adequate waterproofing. Meanwhile, renovations and new additions sometimes alter drainage patterns, unintentionally increasing risk—even for previously dry basements.

Construction Materials

Timber-framed homes resting on concrete slabs, cement block or brick retaining walls, and slab-on-grade homes with poorly sealed footings are all seen across the North Shore. Each needs a tailored waterproofing solution.



Solutions: Mitigating Hydrostatic Pressure and Basement Leaks

1. External Waterproofing

The most effective defence? Apply high-quality membranes to all earth-facing basement walls. Modern products resist hydrostatic pressure—unlike basic paints or damp-proofing compounds used in the past.

“Proper external waterproofing is non-negotiable. Our multi-layered, tanking-grade solutions are tested against Auckland’s unique climate and soils.” – A Plus Group NZ

• • Learn more about our [North Shore waterproofing services]

2. Subsurface Drainage

Install or upgrade subsoil drainage (e.g. pipes or French drains) at the base of your foundations. Well-designed drainage channels redirect groundwater away before it can build up dangerous pressure.

3. Internal Sealants and Repair

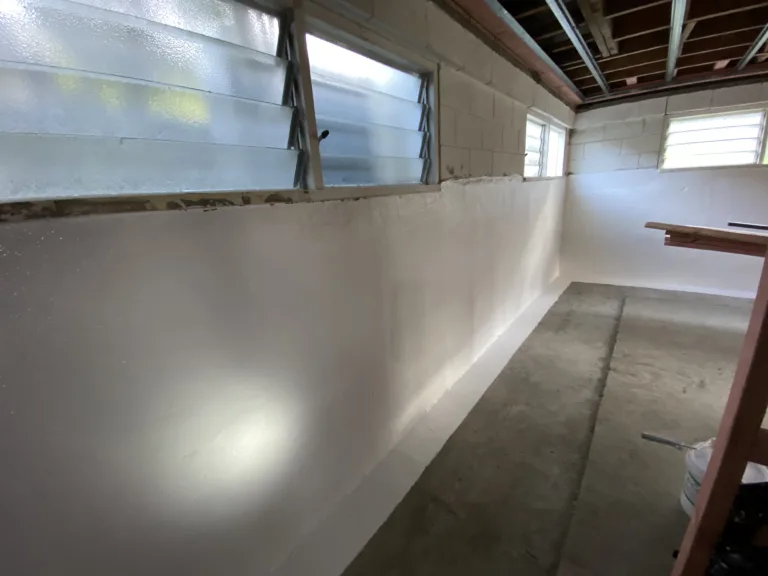

If outside excavation isn’t feasible, internal waterproofing can help. High-build epoxy or crystalline coatings, injected crack repairs, and sump pumps (if necessary) can all help manage water penetration—though external fixes are preferable for persistent problems.

4. Ongoing Maintenance

Keep gutters clear, downpipes unblocked, and external drains free of debris. Well-maintained landscaping helps direct water away from your home.

5. Professional Assessment

A reputable waterproofing specialist (like A Plus Waterproofing) can diagnose issues, test for hidden moisture, and recommend holistic solutions tailored to Auckland’s conditions.

• Contact us directly for a no-obligation [site assessment and detailed quote]



Why Professional Help Matters

Fixing hydrostatic pressure and basement leaks is not a DIY task. Surface treatments may mask symptoms temporarily but fail to protect your home’s structure. Only a qualified specialist can:

• • Identify the source and extent of water ingress

  • Specify solutions that comply with NZ Building Code and local Council requirements

  • Use specialist products and technologies designed for Auckland’s unique challenges

  • Guarantee results for long-term peace of mind



Expert Tip: Early Intervention Saves Money

Treating moisture or musty smells early is always more cost-effective than rebuilding rotten walls and replacing carpets later. Many homeowner insurance policies won’t cover gradual damage—making prevention essential!

Key Links for Further Reading

• • [A Plus Group North Shore Waterproofing – Learn More]

  • Auckland Council

Hydrostatic pressure is an ongoing threat to Auckland basements—especially on the North Shore. With the city’s variable climate, clay soils, and mix of old and new homes, understanding how water behaves around your property is crucial. Spotting early warning signs, investing in professional waterproofing, and installing robust drainage are the best ways to safeguard your biggest asset.

For expert, personalised solutions, visit our [A Plus Group North Shore Waterproofing page] or get in touch for a tailored, no-obligation consultation.
